All of a sudden, over the past week I have received lots of requests for an update on our progress, so here we go. My last update was at the start of November, on the occasion of the first anniversary of our team joining Steinberg. This new update comes more or less on the occasion of the first anniversary of us starting to write our new scoring application. We’ve made a lot of progress in a year, but we still have a long way to go before the product will be in your hands.
In my last update I described the high-level design of the musical brain at the heart of our application: lots of individual engines performing single tasks, some dependent on one another, others running independently. This design approach allows us to break down the immensely complex problem of how to correctly notate and lay out music into smaller, more manageable chunks, and also provides the opportunity for these little engines to be designed and implemented independently, and eventually to run in parallel (unless an engine is dependent on the output of another engine, of course).
I described in broad terms the first couple of such engines that we had implemented already: determining the staff position of a note (taking into account clef, transposition and octave shift), and determining the stem direction of a note (taking into account staff position and musical context). We were also starting to embark on engines to handle note and rest grouping, and to position rests in multiple voices correctly. Over the next couple of posts, I’ll talk about these engines, together with a few other new ones we have developed since the last update.
Note and rest grouping
How notes and rests are rhythmically grouped, based on the prevailing metrical grouping or time signature, has a fundamental impact on how music is apprehended at sight. As with many of the rules of music notation, an experienced musician will instantly recognise if it is wrong, but may not always be able to articulate exactly what is wrong.
Consider the very simple case of a note on the final eighth note subdivision of an otherwise empty bar of 3/4, and a bar of 6/8. You can instantly see which is which:
Now consider the same bar, but with a note of five eighths in duration at the start of the bar. Again, it’s obvious which bar is in 3/4 and which is in 6/8 by the way the long note is divided into smaller parts:
Most scoring programs take quite a simplistic approach to note and rest grouping. Typically, the user inputs the note durations exactly as they want them to appear, and the software only has to worry about creating rests to pad out the bar; in the example above, neither of the two most mature commercial scorewriters provides a means for the user to enter a note of five eighths in duration using the mouse or keyboard, so the user has to choose how to split that note of five eighths himself. The exception to this, of course, is when the user plays notes using a MIDI instrument in real time, or imports a MIDI file – but you might be surprised at some of the choices that the established scoring programs make with relatively simple input.
It seems that, on the whole, existing scoring programs have a simple algorithm for note and rest grouping according to the time signature, with a few common edge cases given special handling.1
Our goal is to handle note and rest grouping completely automatically, while providing a small number of global options to account for some variation in conventions, and of course allowing editing on a case-by-case basis. For example, it’s normal modern practice to use dotted rests in compound time signatures, but if you are reproducing an earlier edition, you might prefer not to use dotted rests; you might not ever want to see double dotted rests; and so on.
To this end, we have devised an algorithmic approach to note and rest grouping that is fully general, so it works satisfactorily in any time signature or beat grouping. This has taken time to get right, but it will be used considerably more in our application than in other scoring programs, because the notation in our application is considerably more dynamic than in most other scoring programs.
Positioning rests
When two or more voices (independent streams of notes) are rendered on the same staff, it’s important that rests in both voices are vertically positioned in such a way as to remove ambiguities in the rhythm of the music. Elaine Gould’s book Behind Bars has some great examples of the kinds of ambiguities that can occur, like this doozy2:
Obviously this example is somewhat contrived, designed to make a point: Gould states that when the notation gets this complicated, each voice should really be given its own staff. But if you’re going to put it on a single staff, you need to ensure not only that rests do not collide with notes (notes obviously can’t move vertically to avoid rests, so rests have to move vertically to avoid notes), but that the rests are placed generally in line with the voice to which they apply. Look, for example, at the 32nd rest at the end of the second bar: this rest is in the lower voice (whose notes are the C5 quarter note and the D6 double-dotted eighth). It could physically be drawn in its nominal normal position, i.e. centered around the middle staff line, as it wouldn’t risk overprinting with a note there: however, it would then look as if it were following the stem-up eighth note in the upper voice, which is ambiguous, if you’re generous, or just plain wrong, if you’re not.
How do the main scoring programs handle this example by default? Here’s Product A, one of the two most mature commercial scorewriters:
Ignoring the issues with stem-up and stem-down notes colliding in the first bar, you can see that a simplistic approach is taken, simply offsetting the rests in each voice outwards, away from their normal position in the middle of the staff, by a space. This isn’t enough to avoid the notes, and only one rest (the 16th rest in the lower voice in the final bar of the example) is positioned satisfactorily.3
Product B, the other of the two main commercial products, fares somewhat better:
This takes a similarly simplistic approach to Product A, offsetting the vertical position of the rests in each voice by a fixed amount, but the decision to offset by three spaces rather than Product A’s one space definitely produces a more legible result.
The open-source music engraving program, which we’ll call Product C, fares better still:
Here all of the differences from Gould’s preferred rendering really come down to a matter of taste: it would be neater to align the eighth rests in the lower voice in the first bar, and it would be clearer to place the lower-voice bar rest in the fourth bar and the upper-voice half rest in the fifth bar on leger lines further offset by one more space, but it certainly provides a legible result by default.
Finally, here’s how the rest positioning algorithm in our application handles this case:
In the interest of full disclosure, the above example shows how the rests are positioned by our algorithm, but is not a direct screengrab from our application, because the prototype score rendering technology in our test harness doesn’t produce such a beautiful result just yet.
While it’s relatively quick to adjust the vertical position of rests in both of the main graphics-based scoring programs (and can be done in Product C by specifying a “pitch” for the rest), in our application it’s our goal that you simply won’t have to do so – even under extreme circumstances such as this contrived example.
More to come
In the next instalment in this series (coming soon!), I’ll describe a couple more of the engines we’ve been working on recently, focused in particular on accidentals.
- It must be said that the two most mature commercial scoring products fare much better in this regard than, say, the leading open-source music engraving program, which takes the most simplistic approach possible when converting MIDI data into notation, simply biting off as much of a long note as possible as can be represented by a single note value (with augmentation dot if necessary), and then handling any remaining duration in the same way, so every long note is always split up using durations that proceed from longest to shortest, completely ignoring the beat divisions implied by the prevailing time signature. Unfortunately for users of text input-based engraving programs, they probably also have the hardest job of fixing up the result, given that they have to manually edit the resulting text input file. In fairness, it is presumably not often that users of these kinds of programs choose to begin a project by importing a MIDI file. However, even the major graphic-based scoring programs offer relatively little control over the rules to be used. ↩
- This example is found at the bottom of page 37. ↩
- Improving rest positioning in Product A is, at the time of writing, its third highest-voted feature request. ↩
Thanks for these updates and responding to our comments, Daniel; we know you’re a busy chap! I’m very much looking forward to getting to try this new application, as it sounds as though it’s going to make my job as an arranger and typesetter much easier.
Product A sneakily identified in Footnote 3…
Well, _all_ products implicitly identified by their file names 😉
One of the things that Finale and Sibelius lack is the ability to score microtonal music, especially Turkish & Arabic notation, in an easy way. It can be done, but they make the user jump through hoops with all kinds of silly setups, plugins, and workarounds. There are plenty of non-Western users around the world who need microtonal accidentals and alternative key signatures that can automatically detune the MIDI notes. Would your team consider implementing these features?
The other blog posts allude to such improvements so that the user will be able to define a set of accidentals and their semantic uses.
good on ! please inclus the individual tunning by instrument ! or multiple player .
as it was possible in sibelius before the 7 .
will your engine automatically choose to lengthen the stems?
@Joseph: A very good and fair question! We haven’t yet written the engine that handles the interlocking of opposing voices (so our crude test renderer just draws them on top of each other, without regard for collisions), but my hope is that this should be one of the possible outcomes, yes; others include increasing the x offset, or reversing the order of the notes, such that the notes go stem-to-stem rather than head-to-head.
I am hoping that the nomenclature in use in this post is a hint that Steinberg has decided to call the new software ‘Product D’.
Sounds like we need a t-shirt contest… And, of course, a theme song.
Ha!
Now we all know the name of your new scoring application! 😉
Daniel–
As you discuss the architectural strategy of loosely-coupled engines operating on multiple threads, how does this integrate with Steinberg’s existing assets? I think it’s been suggested once or twice that playback in Product D would leverage existing Steinberg technology–are your colleagues in Germany thinking along the same lines as your team, or will your approach take you down the path toward developing new playback tools as well?
@John: Our plan is to use the core audio engine technology from Cubase and Nuendo: it’s battle-tested, high-performance code and far more capable than what we could come up with on our own. The nitty-gritty of exactly how this technology will be integrated into our application is still being worked out in collaboration between the engineers here in London and in Hamburg. To my knowledge, Cubase is already multi-threaded in any case.
Cubase is multithreaded and the audio engine is pretty damn stable, experienced in my 10 years of working with it.
Tech-wise, this design collaboration has great potential.
PLEASE, PLEASE!, make available ‘playback capability and spacing distribution for simultaneous time signatures (different lengths) ! ! ! ! ! ! ! !
absolutly !!!!!!
Lucas, I seem to remember this is aready agreed …
Daniel, am I right?
I don’t know if this is the right place to simply list requests (and please tell me if there is a better place, or if you don’t need any right now!) but I sure would like to see a way to quickly generate common rhythmic groupings (and the ability to define what is “common”) such as permutations of a quarter beat broken into 8ths and 16ths, triplets, etc. Rhythm is the most difficult part of note entry, and it would be very nice not to have to always copy-paste from an earlier example, or use tricks to get, say, an eighth note triplet written as quarter-eighth (in Sibelius).
And don’t get me started about hyphens in lyrics. They need a lot more attention than the standard packages have given them.
Exciting! I love the way you’re willing to discuss the inner workings and thought processes… I *so* wish I could move to England to write C++ code with you! I don’t think I’ve been this enthused since I encountered the first advert for Sibelius 1.0 in EM years ago. So long ago that I had request the demo on CD because downloads were still unheard of!
Have you put similar thought into lyrics spacing? (The bane of my recent work…) I’d love to see much more intelligence about when and how extra spacing is added versus strategic moving of the syllables, etc. Sign me up for any help testing you want (when you get to that point)!
Cheers!
@Chris: We haven’t actually started on lyric spacing yet, but we definitely have some ideas about how to handle it better than in the major existing scoring programs.
Yes re lyrics! I deal with entering or scanning and then setting vocal music almost every day, and lyrics can be a problem. Here’s another hyphen issue that drives me nuts: hyphens in Photoscore go into Sibelius as hard hyphens. Don’t know in which system the problem lies, but in what world do hard hyphens dominate in lyrics!
I also would love to be part of any testing that you need.
Cheers!
Ed
A clarification on your first footnote: MIDI import in MuseScore was improved last summer, so it ties according to time signature in the nightly builds.
@exa: Product C isn’t MuseScore. But I saw the Google Summer of Code project for MuseScore’s MIDI import last year, and it’s great to see that area getting some attention.
In the very first pair of examples i would suggest that the correct notation for the 6/8 example would be a dotted crotchet rest followed by a crotchet rest followed by the quaver note. Maybe it was written the way it is for the sake of example, but in compound time the division is usually 2+1, not 1+1+1.
@Derek: That’s a matter of taste, I think. One of the small number of options that our note and rest grouping algorithms provide is whether or not rests at the start of compound beats should be consolidated. I suspect that the default setting will indeed be to enable consolidation of rests at the start of compound beats, i.e. to show a quarter (crotchet) rest in that specific situation.
@ Derek – that concurs with what I’m expected to teach my abrsm music theory students too.
This is a fantastically insightful blog, really enjoying reading it. Thanks Daniel! On the (sort of) related topic of multiple instruments on one staff, I was wondering if you guys were planning on providing a technique to input instrument numbers vertically at the start of the staff, as you might see in a conductors score. I am yet to discover a technique to do this on Sibelius without doing the whole thing manually which is a real pain!
@George: We do have plans in this area, but I don’t want to give away too much too soon. Perhaps I will be able to talk about this more in a future post. I’m glad you’re finding the blog interesting!
Can’t wait to try out this new software, Daniel. I don’t suppose there is an ETA yet??? 🙂
@Engela, Daniel will not offer any ETA on the new app. But after reading between the lines Daniel’s various public statements to date and after consulting with a top music PSYCHIC, I believe the app not appear for public consumption until sometime in 2015 or 2016.
I started music processing on HB Engraver eons ago, progressed through Nightingale (dismissed Finale) then on to Sibelius on the Acorn, and so on to 6 (OK) and 7 (dislike) – I SO hope this will be available before I finally throw in the towel. Keep up the good work, Daniel and Team – if anyone knows what’s needed, you do, and I’m sure you’ll do your darnedest to make it work. Can’t (but have to) wait! Blog is fascinating – thank you.
Great article and comparison.
Indeed surprising, that the market leaders do not even completely prevent rest/note or note/not collisions.
Lilyond obviusly does the best job for the existing programs.
Why that? I think one reason for lilyponds superior engraving results is, that due to its nature as a compiler it has “all time of the world” to format the score. Whether it takes one second or two, that doesn’t matter. The user has to wait anyway.
This is different from graphical interactive notation editors. In those editors all formatting has to be done in realtime-like performance.
Imagine what happens, if you move a note up or down and it hits a note in another voice. The note has to move left or right, it will take more space, the bar will grow wider, the linebreaks might change, and finally you end up with a orchestra score taking one page more of space than before. Simply by dragging an innocent note!
This reformatting has to be performed in milliseconds, otherwise you guarantee total annoyance for the user.
This is the fundamental difference to compilers like lilypond. Compilers can simply choose the best algorithm with arbitrary complexity. Editors in contrast alwas have to care for highest performance and therefore have to undergo compromises.
However, it can be done better than shown by products A and B. For example PriMus does a better job as you can see here:

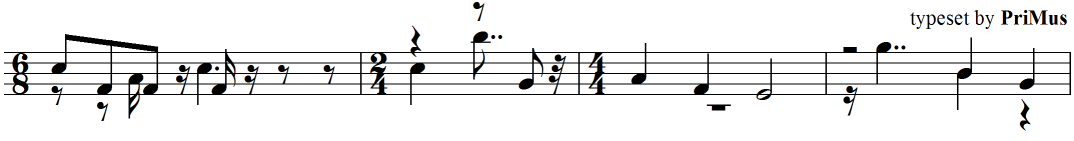

http://www.columbussoft.de/img/xref/PolyphonicRestsInPriMus.PNG
